Roman Haven6 700mm Pivot Shower Door

Haven6 Showers Plus Pivot Door – 700mm

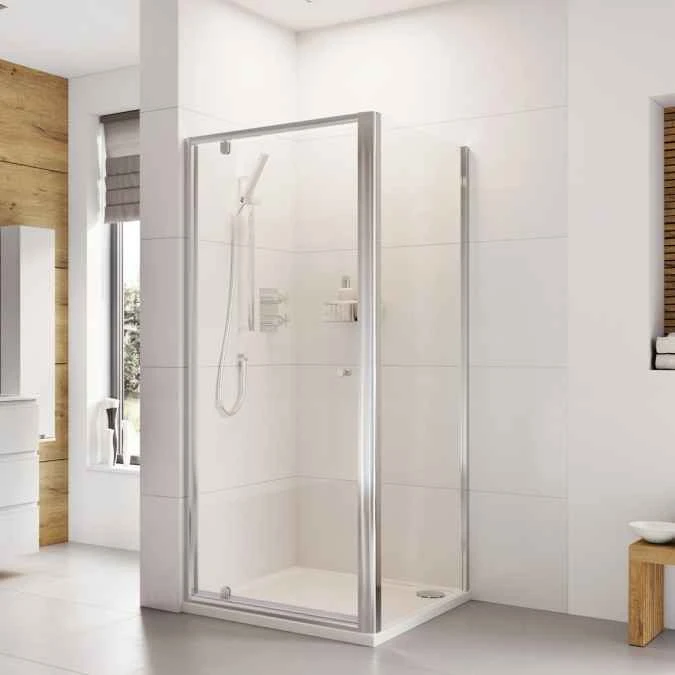

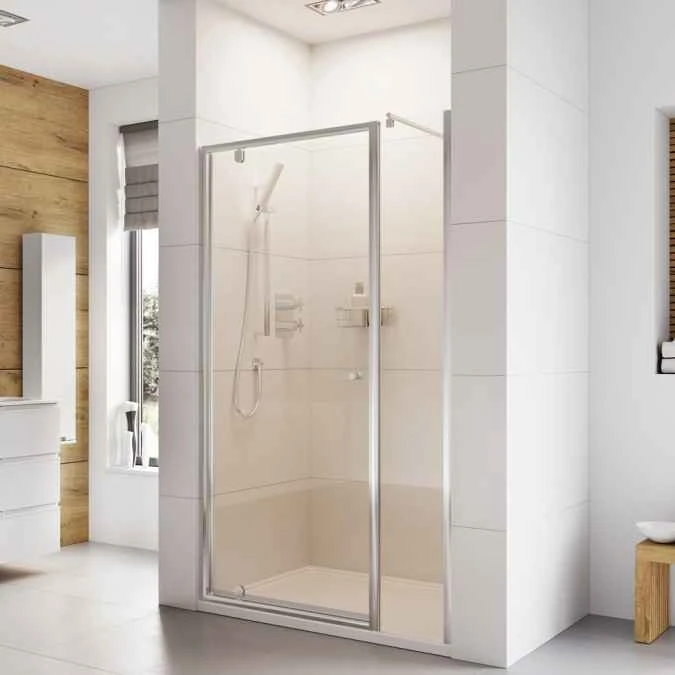

The Haven Showers Plus Pivot Door (700mm) creates an efficient and flexible solution for any bathroom, the door is carefully engineered to take up less space when open to allow for extra fixtures in your bathroom. This pivot door can be installed in an alcove or a separate side panel can be purchased to make an enclosure.

This Haven Showers Pivot Door is reversible for a left or right hand fitting.

Haven6 Plus Bi Fold Door Details:

• Width: 700mm
• Height: 1900mm
• Aperture: 400mm
• Adjustment (Alcove Fitting): 640mm – 690mm
• Adjustment (With Side Panel): 666mm – 716mm
• Glass Thickness: 6mm
• Product Code: H3P7CS

 Optional Side / Inline Panel details:

• Code H3R7CS – Side Panel 700 x 1900 – Adjustment of 665 – 690mm
• Code H3R76CS – Side Panel 760 x 1900 – Adjustment of 725 – 750mm
• Code H3R8CS – Side Panel 800 x 1900 – Adjustment of 765 – 790mm
• Code H3R9CS – Side Panel 900 x 1900 – Adjustment of 865 – 890mm
• Code H3R10CS – Side Panel 1000 x 1900 – Adjustment of 965 – 990mm
• Code H3HL2CS In-Line Panel 200 x 1900 – Adjustment of + 200mm to door size
• Code H3HL3CS In-Line Panel 300 x 1900 – Adjustment of + 300mm to door size
• Code H3ZEXS – Extension Profile 40mm extra

Do you need a shower tray?

Many shower trays are available for this shower enclosure on Rubberduck Bathrooms, you can access these by following the link below:

Click here for shower trays
