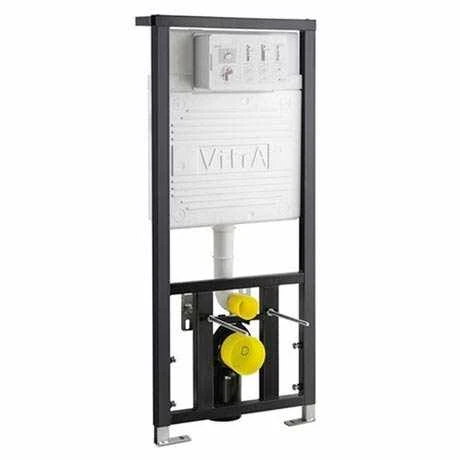

VitrA WC Frame Regular 1120 X 120 For Solid Walls

VitrA WC Frame 1120 x 120mm Pre-Wall Rapid Mounting

Installing a Wall Hung WC creates a more spacious feel and makes the area around the WC much easier to keep clean.  This extra compact frame can be used in conjunction with many wall-hung WC pans and a range of dedicated wall plates.

This Vitra 120mm depth cistern and frame is designed for wall hung WC’s installed against a solid wall (strong such as brick), due to the fixing brackets are located both on the floor and for installation onto the wall.

The VitrA Short WC frame for Wall Mounted toilets comes with an option for a front or top mounted flush plate (flush plate sold seperately.) and includes dual flush 3/6 litre cistern.

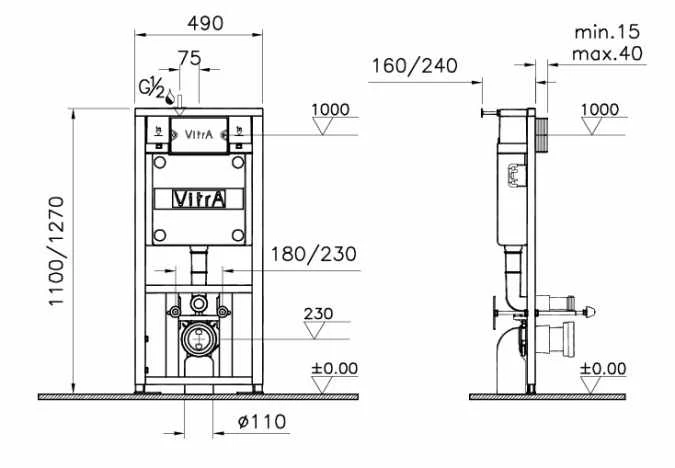

Vitra Toilet Fixing Frame Technical Information

• Control type: Dual Flush
• Water volume: 3/6 Litres
• Working pressure: 0.5-10 Bar (recommended 3-5 BAR)
• Insulation: Moulded styrofoam to prevent condensation in the cistern and ensures sound insulation
• Flush Plate: Not included

Box contents

• WC Frame
• Protective channel
• Support legs
• Waste bend pipe set
• WC Connection set

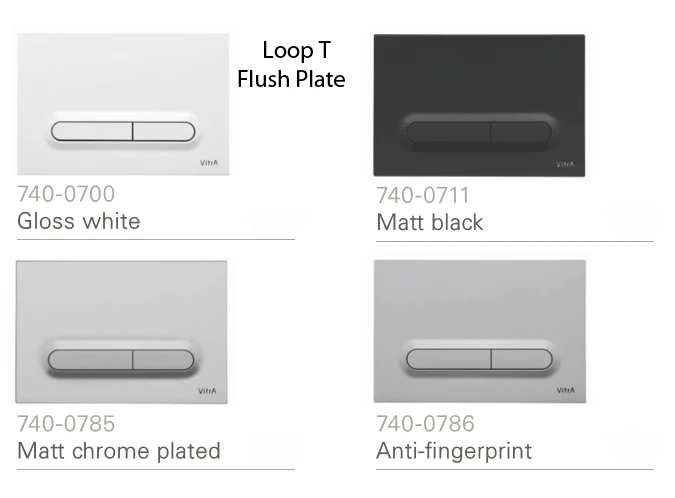

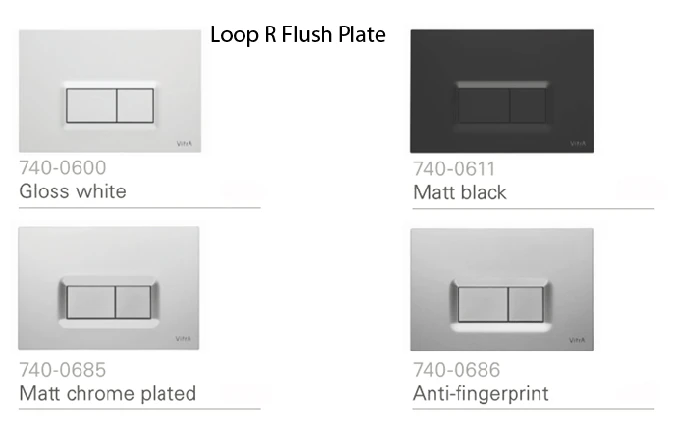

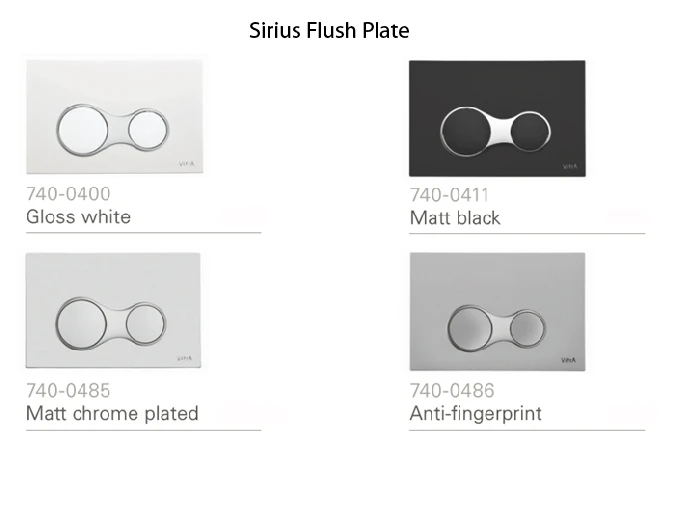

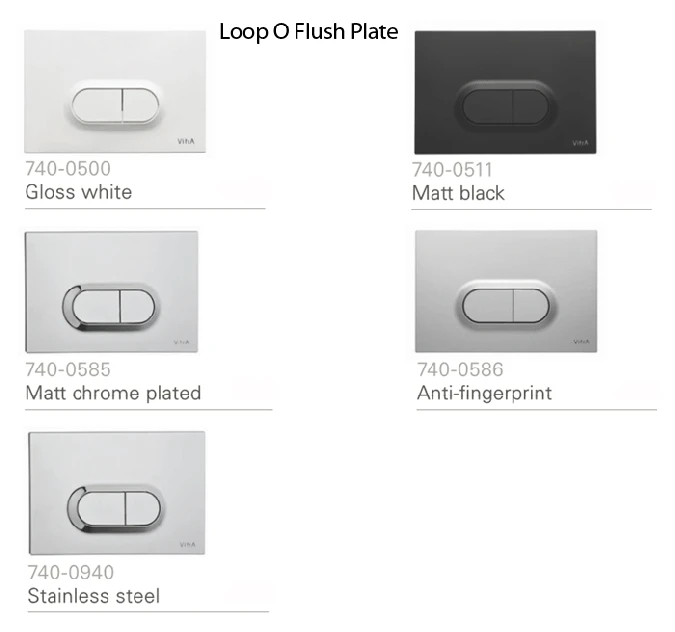

Please note:  The flush plate is not included as standard with this product, a flush plate can be added from the drop down menu, there are 4 types of flush plate to choose from, these are referenced in the images, click on image and scroll through to see all designs of image as only 4 images show on main page.

VitrA

VitrA have a large range of sanitaryware and have been producing sanitaryware under the VitrA name since 1958 however their heritage goes further with the history going back to 1909. VitrA supplies millions of pieces or ceramic sanitaryware each year to over 75 countries around the globe, Many things have changed since the company was formed but VitrA draws on a proud heritage to create contemporary bathrooms with timeless appeal and luxury.
